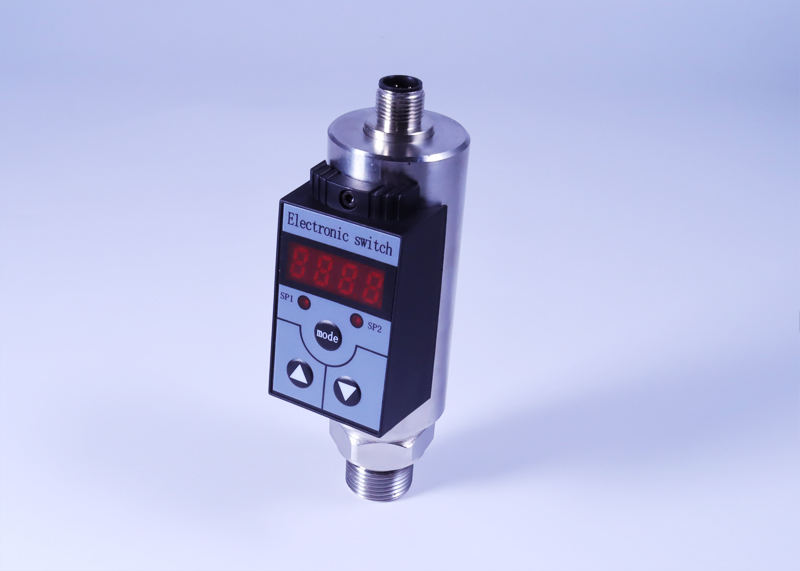

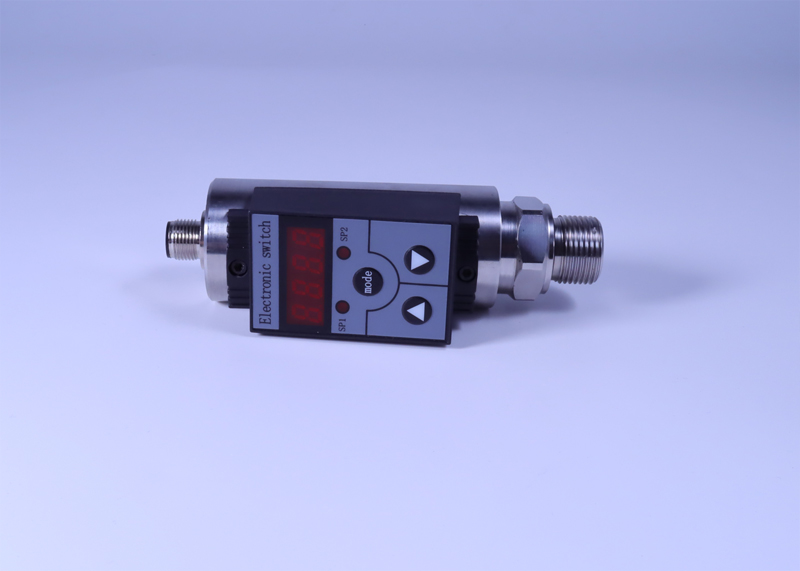

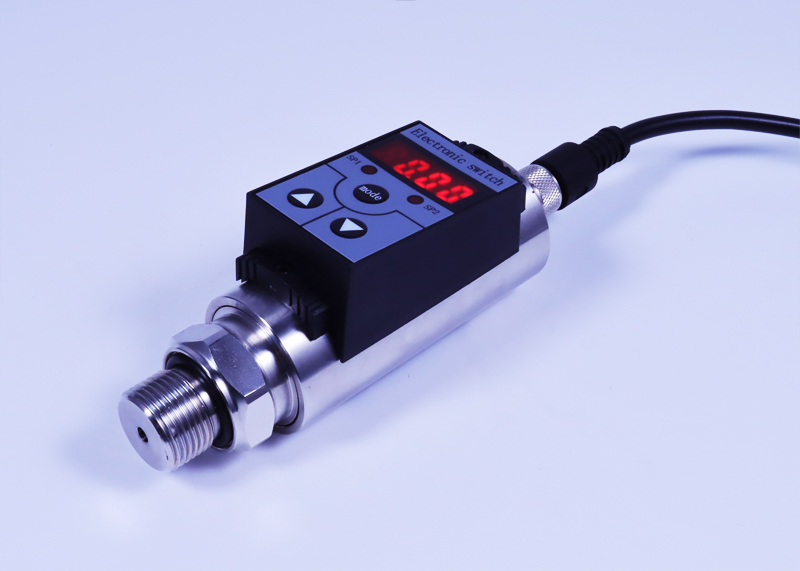

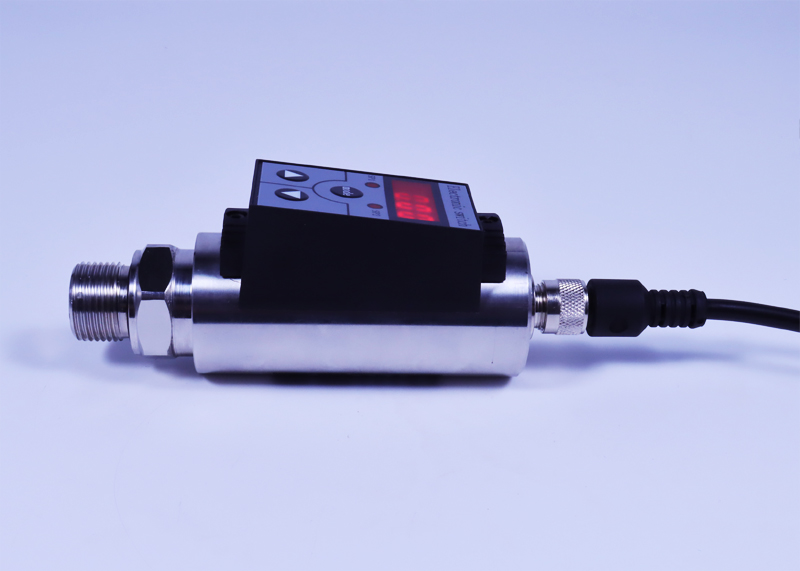

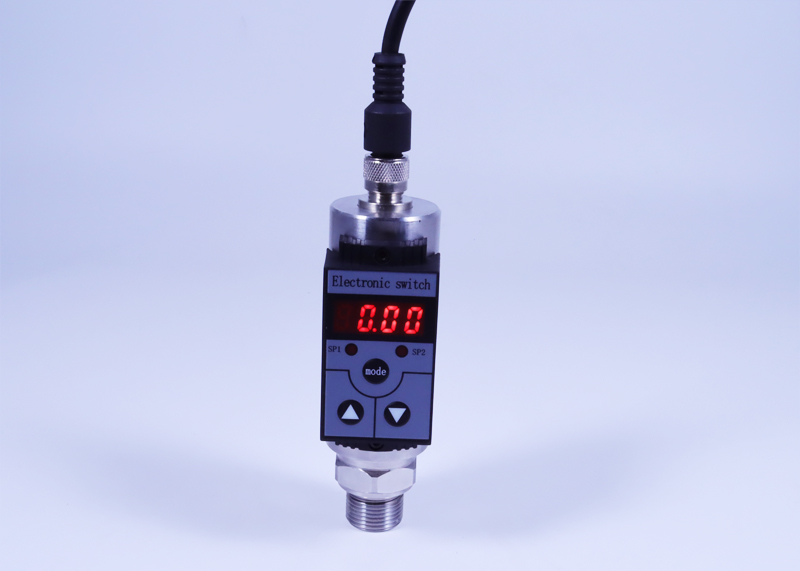

數顯壓力開關 PT500-EDS300

型號：PT500-EDS300

采用進口感壓芯片；4位數模塊顯示壓力值；
按鍵調校及現場設置各種參數，操作方便；
壓力預設開關點和延滯切換輸出；
開關量可在零點到滿度之間任意設定；
2路開關量輸出，帶載能力1.2A；
可帶一路4-20mA或RS485-RTU輸出

常用關鍵字：
智能壓力開關 數字壓力開關 數顯壓力開關
雙輸出壓力傳感器開關量壓力變送器
可替代：EDS300系列智能壓力開關

產品優勢
規格參數
訂購注意事項
使用注意事項
常見問題
我要提建議

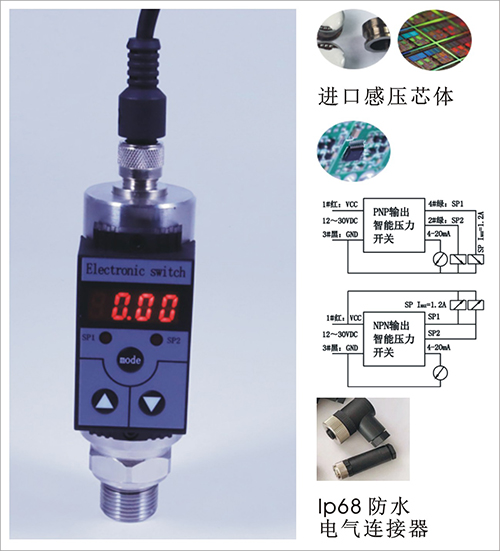

芯? ? ? ?片：
采用進口感壓芯片；選進的貼片工藝，具有零點、滿量程補償、溫度補償；
擴散硅芯體，靈敏度高，輸出大，具有零點、滿量程補償、溫度補償；適用于小量程壓力變送器；
應變計芯體，高強度彈性形變感壓材料，配有溫度補償，具有抗沖擊、耐疲勞性能優勢；適用于一般量程壓力變送器；

信號處理及控制輸出：

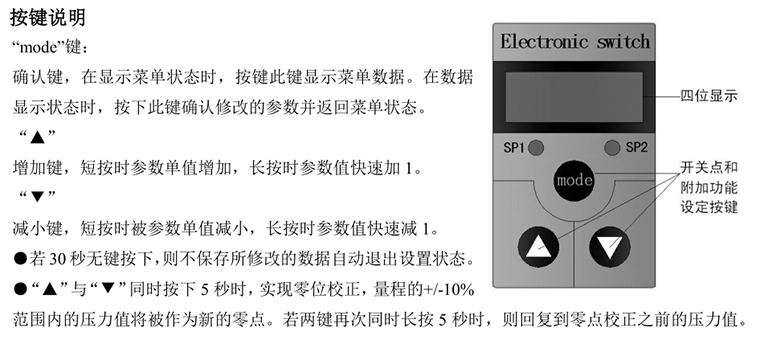

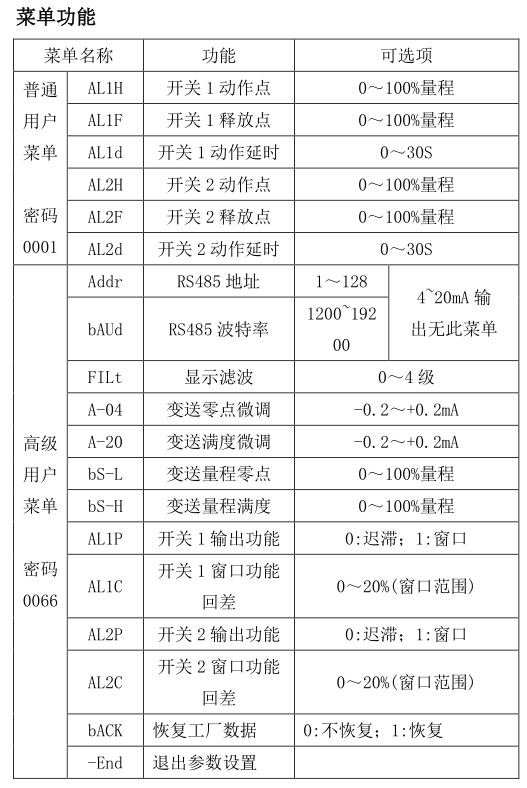

4位數字顯示當前壓力值,顯示范圍：-1999 - 9999，按鍵調校及現場設置各種參數，操作方便；
高精度穩定放大集成電路，24位ADC采樣處理芯片，DSP數字信號調理算法，多點性線溫度校準，電壓電流過載保護；
兩路PNP或NPN開關量 + 4-20mA模擬量變送輸出；
兩路PNP或NPN開關量 + RS485數字通訊輸出；

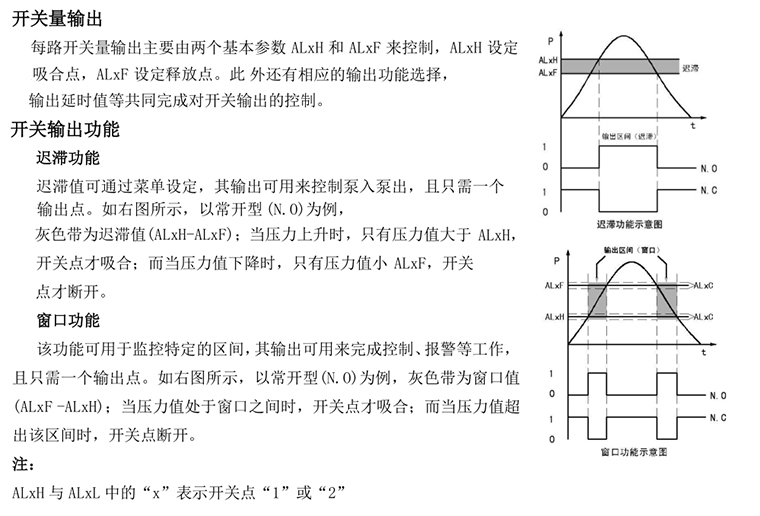

壓力預設開關點和延滯切換輸出，開關量可在零點到滿度之間任意設定；
外殼設有節點動作發光二級管，便于觀察；
2路開關量輸出，帶載能力1.2A ；

結? ? ? ?構：
結構小巧、全封焊結構、抗沖擊、耐疲勞、可靠性高、多種過程連接方式；
過程連接材料，304，方式多樣化（M20、M16、M12、G1/4、G1/2、1/2NPT、1/4NPT等）；
外殼壓力接口可330°旋轉，方便旋轉表頭方向；
電氣連接：4/5芯M12連接器、四芯赫斯曼連接器、4/5芯航空連接器可選項；
按輸出配套標準四芯/五芯屏蔽電纜；

應? ? ? 用：
管道水壓及水壓設備壓力測量與控制
液壓系統管道及液壓設備壓力測量控制
與PLC、顯示儀表配套實現壓力開關量的采集與輸入
其它民用/工業 自動化領域的壓力測量

Chip:
Adopt imported voltage sensing chip; select the chip technology, with zero, full range compensation, temperature compensation;
Diffused silicon core, high sensitivity, large output, zero point, full range compensation, temperature compensation, suitable for small range pressure transmitter;
Strain gauge core, high-strength elastic deformation pressure sensing material, equipped with temperature compensation, has the advantages of impact resistance and fatigue resistance, suitable for general range pressure transmitter;

Signal processing and control output:
4-digit digital display of current pressure value, display range: - 1999 - 9999, key adjustment and field setting of various parameters, easy to operate;
High precision stable amplification IC, 24 bit ADC sampling processing chip, DSP digital signal conditioning algorithm, multi-point line temperature calibration, voltage and current overload protection;
Two channels of PNP or NPN switching value + 4-20mA analog quantity transmission output;
Two channels of PNP or NPN switching value + RS485 digital communication output;
Pressure preset switch point and delay switch output, switch value can be set from zero point to full degree;
The shell is provided with a node action led for easy observation;
2-way switch output with load capacity of 1.2A;

Structure:
Small structure, full seal welding structure, impact resistance, fatigue resistance, high reliability, a variety of process connection;
Process connection material, 304, diversified modes (M20, M16, M12, G1 / 4, G1 / 2, 1 / 2NPT, 1 / 4NPT, etc.);
The shell pressure interface can rotate at 330 ° for the convenience of rotating the direction of the meter head;
Electrical connection: optional 4 / 5-core M12 connector, 4-core hesman connector and 4 / 5-core aviation connector;
4-core / 5-core shielded cable according to output matching standard;

Application:
Pressure measurement and control of pipeline water pressure and hydraulic equipment
Pressure measurement control of hydraulic system pipeline and hydraulic equipment
Complete with PLC and display instrument to realize the collection and input of pressure switch value
Pressure measurement in other civil / industrial automation fields

應用領域：

石油化工
石油管道
供氣系統
恒壓供水系統
給水設備
液壓設備

產品家族：

一、技術參數
測量介質：液體、氣體（與產品過程連接材料兼容）
壓力形式：表壓、絕壓
量? ? 程：0～0.6～60MPa～150MPa
-0.1～0～0.6～5MPa
-100KPa～10KPa～40MPa
±10KPa～±100KPa
綜合精度：±0.25%FS；±0.5%FS；±1%FS
非線性：≤0.25%FS
重復 性：≤0.1%FS
輸出信號：PNP/NPN開關量
PNP/NPN開關量 + 4-20mA模擬量
PNP/NPN開關量 + RS485-RTU 通訊
供電電壓：24VDC(9～30VDC) /消耗電流<60mA
顯示方式：4位數碼管
顯示范圍：-1999 - 9999
開關負載容量：<24V1.2A
開關壽命：≥100萬次
絕緣阻抗：≥1000 MΩ/100VDC
負載阻抗：電流輸出: ≤800Ω
介質溫度：-20～80℃
環境溫度：-20～70℃
補償溫度：0～70℃
響應時間：≤5mS
過載壓力：150%FS
破壞壓力：5倍量程(量程小于5MPa)；3倍量程(量程大于5MPa)
電氣連接：M12電氣連接器（四芯/五芯）
防護等級：Ip65
連接電纜：四芯/五芯屏蔽電纜，標準長度：3米
連接材料：304/316L
過程連接：M20X1.5,G1/2,G1/4,ZG1/4,1/4NPT,ZG1/2,G3/8,M12X1.5……

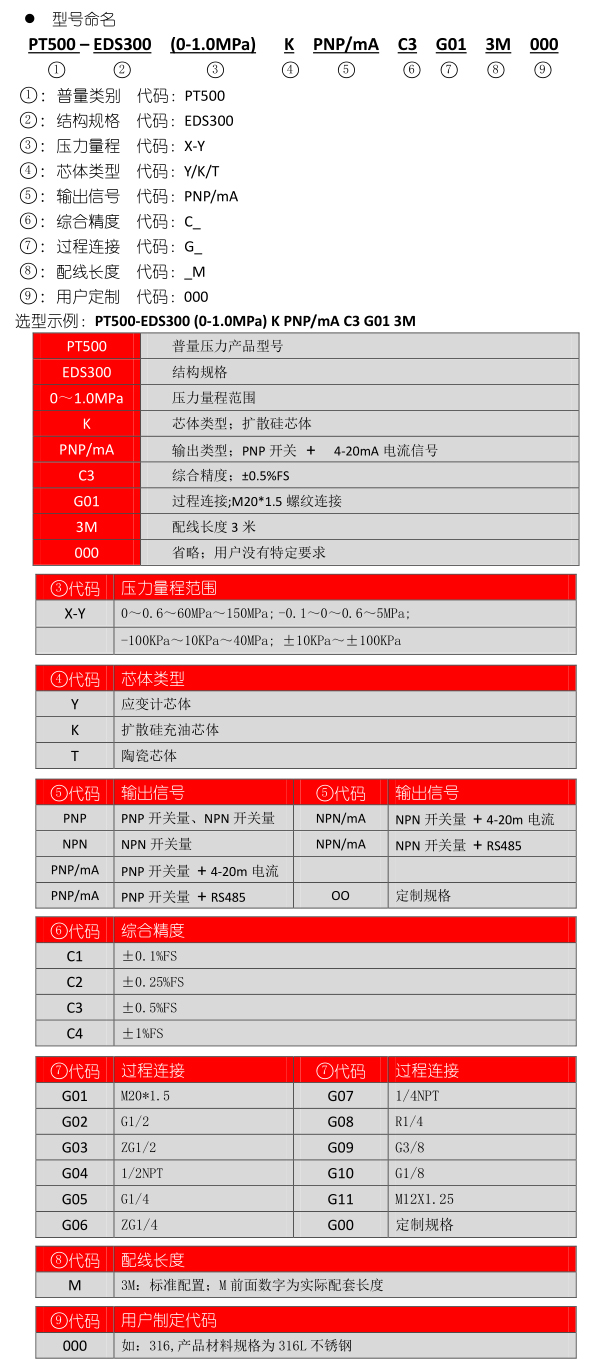

二、規格型號

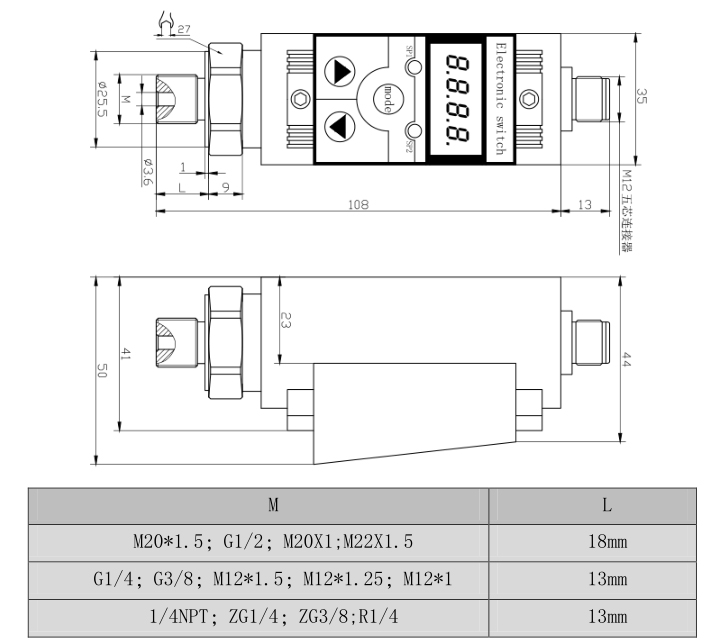

三、結構尺寸

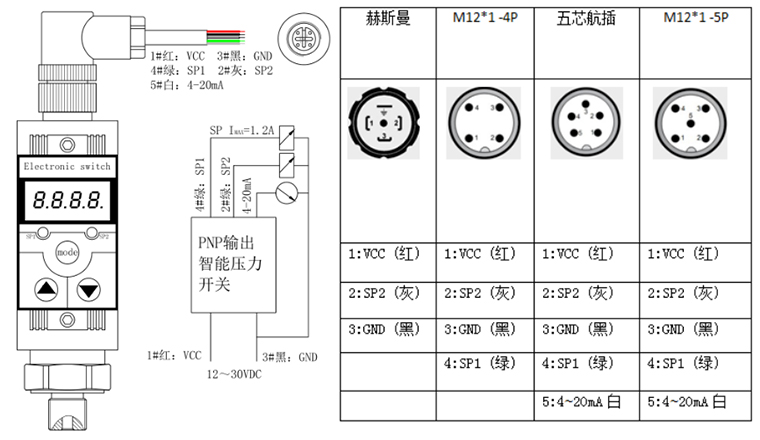

四、電氣連接

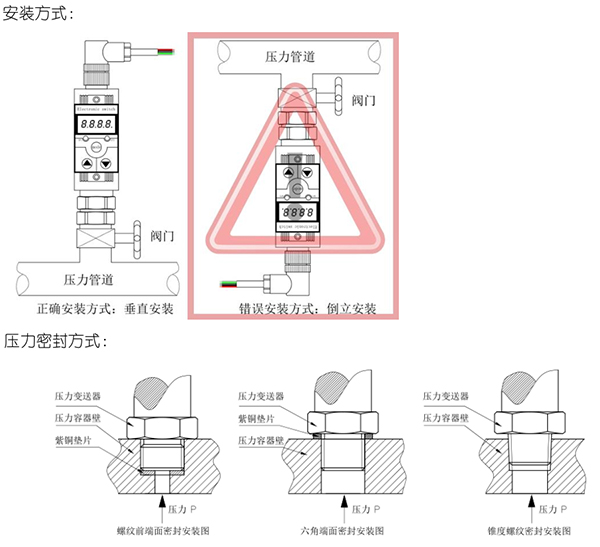

五、安裝方式

Measuring medium: liquid and gas (compatible with connecting materials of product process)
Pressure form: gauge pressure, absolute pressure
Range: 0 ～ 0.6 ～ 60MPa ～ 150MPa
-0.1～0～0.6～5MPa
-100KPa～10KPa～40MPa
±10KPa～±100KPa
Comprehensive accuracy: ± 0.25% FS; ± 0.5% FS; ± 1% FS
Non linear: ≤ 0.25% FS
Repeatability: ≤ 0.1% FS
Output signal: PNP / NPN switching value
PNP / NPN switching value + 4-20mA analog value
PNP / NPN switching value + rs485-rtu communication
Power supply voltage: 24VDC (9-30vdc) / consumption current < 60mA
Display mode: 4-digit nixie tube
Display range: - 1999 - 9999
Switch load capacity: < 24v1.2a
Switch life: ≥ 1 million times
Insulation impedance: ≥ 1000m Ω / 100VDC
Load impedance: current output: ≤ 800 Ω
Medium temperature: - 20-80 ℃
Ambient temperature: - 20 ～ 70 ℃
Compensation temperature: 0 ～ 70 ℃
Response time: ≤ 5ms
Overload pressure: 150% FS
Failure pressure: 5 times of range (range less than 5MPa); 3 times of range (range greater than 5MPa)
Electrical connection: M12 electrical connector (four core / five core)
Protection grade: IP65
Connecting cable: four core / five core shielded cable, standard length: 3M
Connection material: 304 / 316L
Process connection: M20x1.5, G1/2, G1/4, ZG1/4, 1/4NPT, ZG1/2, G3/8, M12x1.5

PT500-EDS300產品訂購注意事項
1、產品量程選擇：
為了使產品精度、壽命、穩定性等功能達到最佳效果，產品的量程選擇參照以下公式計算：
量程 = 系統最大壓力 X （1.2-1.5）倍；
產品的實際測量壓力范圍，應該在量程范圍的15%-80%；

2、產品供電及輸出：
供電范圍；直流12-30VDC；
PNP開關型和NPN開關型的控制電路的區別；
PNP及NPN開關量輸出的帶負載能力，驅動電流小于1.2A；
是否需要帶4-20mA變送輸出；
還RS485-RTU輸出時，請先了解通訊協議；

3、用戶要了解產品的測量介質特性：
介質規格、介質溫度、介質純度（是否含有雜質或顆粒等）；

4、用戶要了解產品的安裝環境及安裝方式：
室內或室外安裝；
環境溫度；
要求的密封等級；
設備的振動范圍；
安裝方式：螺紋、法蘭、特殊結構；
安裝空間是否滿足產品外形尺寸；

1. Product range selection:

In order to achieve the best effect of product accuracy, life, stability and other functions, the range selection of the product is calculated by referring to the following formula:
Range = x (1.2-1.5) times of the maximum system pressure;
The actual measuring pressure range of the product should be 15% - 80% of the range;

2. Product power supply and output:
Power supply range: DC 12-30vdc;
The difference of control circuit between PNP switch type and NPN switch type;
The output capacity of PNP and NPN switching value with load, driving current less than 1.2A;
Whether 4-20mA transmission output is required;

3. The user should understand the measurement medium characteristics of the product:
Medium specification, medium temperature, medium purity (whether containing impurities or particles, etc.);

4. Users should understand the installation environment and installation mode of the product:
Indoor or outdoor installation;
Ambient temperature;
Required sealing level;
Vibration range of equipment;
Installation method: thread, flange, special structure;
Whether the installation space meets the overall dimension of the product;

產品供電24VDC（范圍：9-30VDC）；
嚴禁使用硬物（如：螺絲刀、手指、鐵釘?shù)龋┤ナ沟脡盒倔w受壓力測量輸出；
電源和信號線按訂購產品規格要求，正確接線；
產品安裝時，受力部位為“過程連接六方扳手位”，扳手規格與六方相對應；
嚴禁被測系統的介質溫度、壓力量程、激勵電壓超過變送器的額定使用范圍；
注意保護變送器引出電纜，現場使用跨度過大時，建議使用金屬管保護或架空；
產品安裝于通風、干燥、無強腐蝕環境，露天安裝加防護裝置，避免陽光直接照射；
線路連接盡量短；采用屏蔽線；? 盡量避免直接接近引起干擾的用戶裝置或電器和電子裝置的接線若用微型軟管安裝，
殼體必須單獨接地?

Product power supply 24VDC (range: 9-30vdc);
It is strictly prohibited to use hard objects (such as screwdriver, finger, iron nail, etc.) to make the pressure core body under pressure measurement output;
The power and signal wires shall be correctly wired according to the specifications of the ordered products;
When the product is installed, the stressed part is "process connection hexagon wrench position", and the wrench specification corresponds to hexagon;
It is strictly prohibited that the medium temperature, pressure range and excitation voltage of the tested system exceed the rated use range of the transmitter;
Pay attention to protect the outgoing cable of the transmitter. When the span is too large on site, it is recommended to use metal pipe for protection or overhead;
The product is installed in a ventilated, dry and non corrosive environment, and installed in the open with protective devices to avoid direct sunlight;
The line connection shall be as short as possible; shielded wire shall be used; direct access to the user device causing interference or the wiring of electrical and electronic devices shall be avoided as far as possible if the micro hose is used for installation,

The housing must be grounded separately

錯誤代碼
Er01---開關 1 輸出短路，出現錯誤輸出關閉且再不控制。排除措施：排除短路后，重新上電。
Er02---開關 2 輸出短路，出現錯誤輸出關閉且再不控制。排除措施：排除短路后，重新上電。
Er12---開關 1/2 輸出同時短路，出現錯誤輸出關閉且再不控制。排除措施：排除短路后，重新上電。
ErEP---EEPROM 數據校驗出錯，可能原因是
強烈的電磁干擾或者某個器件故障。排除措施：斷電后重新上電，或者進入高級用戶菜單恢復工廠設置。
ErAd---儀表內部模數轉換出錯，可能原因是強烈的電磁干擾或者某個器件故障。排除措施：排除電磁干
擾源，儀表殼體合理接地。

Error code

Er01 --- the output of switch 1 is short circuited. In case of error, the output is closed and it is not controlled again. Troubleshooting measures: after removing the short circuit, power on again.

Er02 --- the output of switch 2 is short circuited. In case of error, the output will be closed and will not be controlled again. Troubleshooting measures: after removing the short circuit, power on again.

Er12 --- the output of 1 / 2 switch is short circuited at the same time, and the wrong output is closed without control. Troubleshooting measures: after removing the short circuit, power on again.

ErEP---EEPROM data verification error, the possible cause is

Strong electromagnetic interference or failure of a device. Troubleshooting: power on again after power failure, or enter advanced user menu to restore factory settings.

ERAD --- internal analog-to-digital conversion error of the instrument, which may be caused by strong electromagnetic interference or a device failure. Elimination measures: eliminate electromagnetic drying

The interference source and instrument shell shall be properly grounded.
